L&H Omega TRACKPADS FOR BLASTHOLE DRILLS

L&H Omega Trackpads for Blasthole Drills Download Tech Sheet PDF

OVERVIEW

Engineered for blasthole drills with Cat®-style undercarriages, our L&H Omega Trackpads alleviate the inherent “dozer” design shortfalls.

Benefits

  • Reduce steering load. Our design reduces the extremely high steering forces transferred to the chain links by typical double- and triple-grouser trackpads.
  • Reduce contact forces. Trackpad improvements minimize contact forces to improve machine flotation, reducing chain link stress and ground-bearing pressure.
  • Install without modifactions. Enhanced alloy steel trackpads mount directly to the existing drive chains utilizing the same track bolts and retainers.

L&H Omega Trackpads for Blasthole Drills

TECHNICAL DETAILS

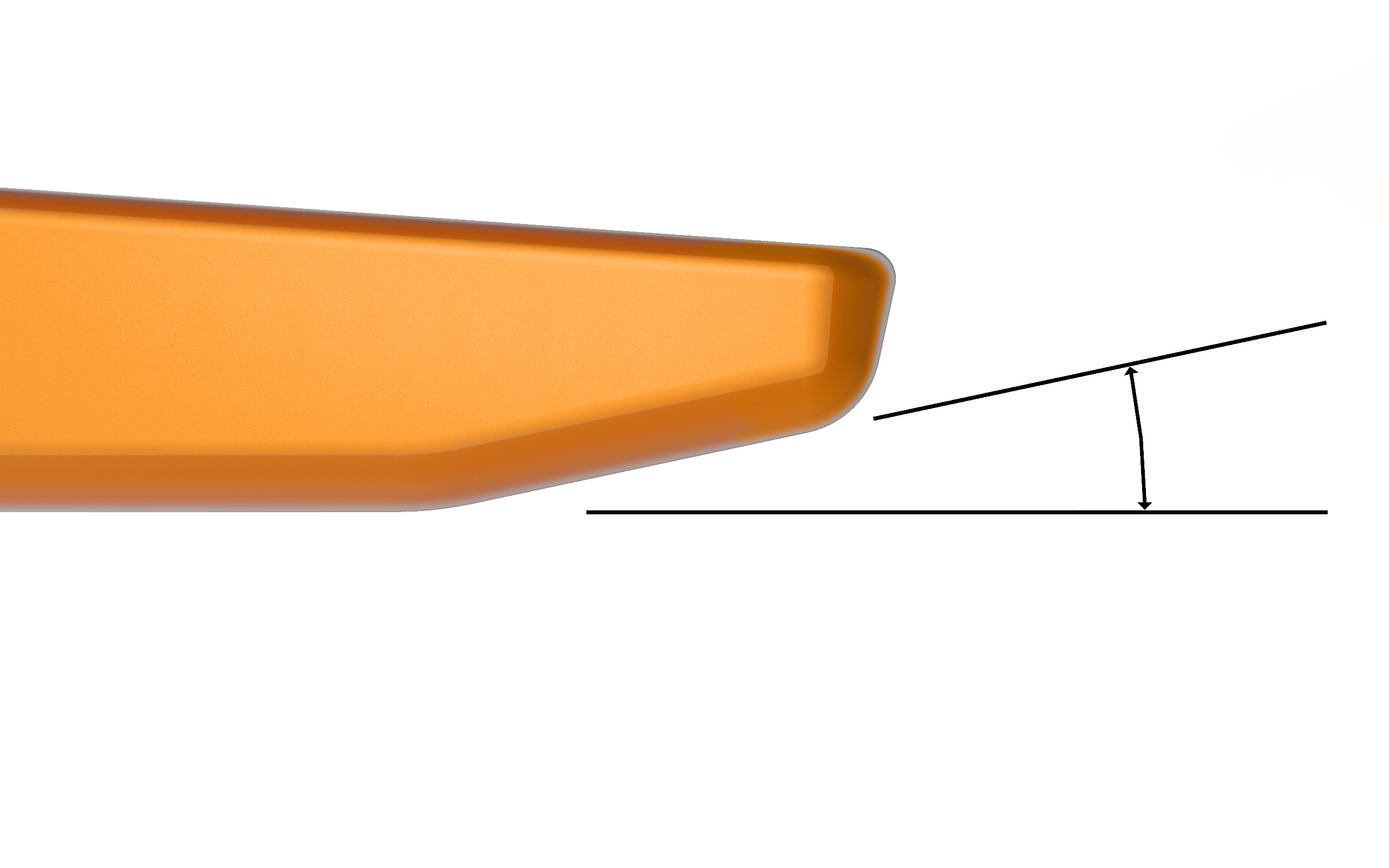

Beveled contact face

The beveled contact face provides a less severe edge when tracks slew sideways, significantly improving machine performance and reducing trackpad wear.

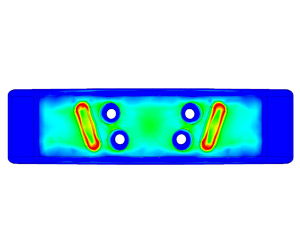

Design

Multiple improvements over OEM designs, including increased track width and counter bores, reduce chain link stress and ground bearing pressure.

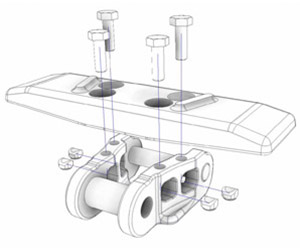

Direct replacement

100% OEM compatible, the L&H Omega Trackpads install with standard hardware. Bolt heads are protected with counter bores, eliminating contact forces from the ground.

Learn more about L&H Omega products.
