L&H Omega STRADDLE MOUNT FOR BLASTHOLE DRILLS

L&H Omega Straddle Mount for Blasthole Drills Download Tech Sheet PDF

OVERVIEW

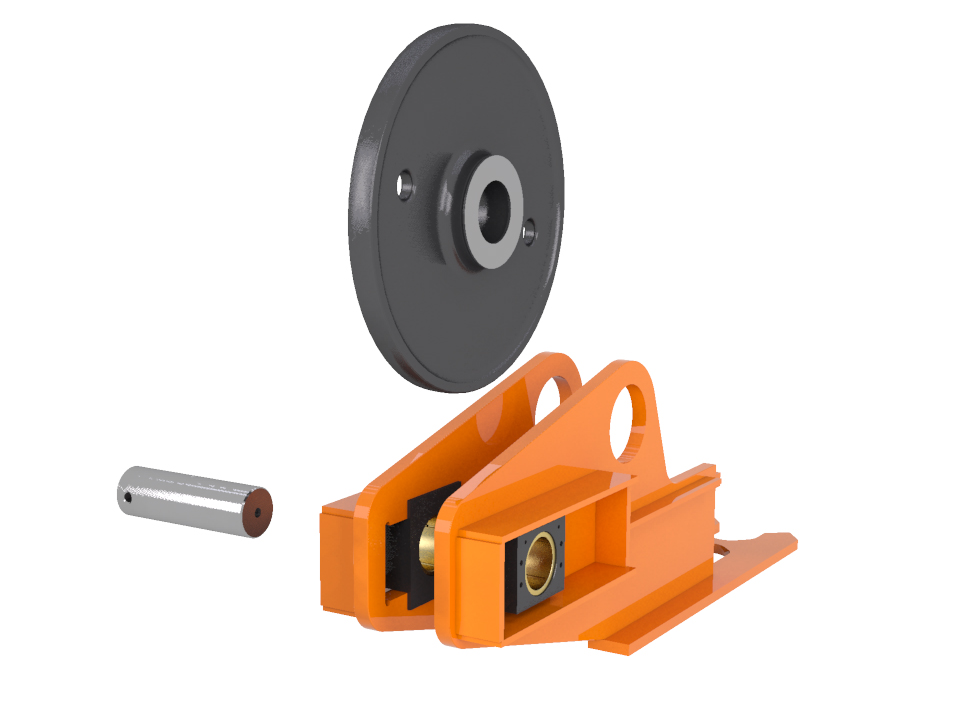

Engineered for blasthole drills, our L&H Omega 49R Straddle Mount front idler significantly improves the life of the idler assembly and promotes stable undercarriage system operation.

Benefits

  • Increased stabilization. Improved stabilization prevents the idler from walking out of the tracks.
  • Improved resistance. Idler has more than two times the resistance to wobble as compared to the OEM design.
  • Easy bushing inspection. Bushings can be inspected externally, without removing the idler.

TECHNICAL DETAILS


Increase surface contact

Idler block flanges are extended to provide 100% surface contact to the thrust washers.

Improved wear

Enhanced thrust washers on each side of the idler increases the wear surface by more than 200%.

Increased lifespan

Significantly increased shaft bushing surface area extend both idler shaft and bushing life.

Learn more about L&H Omega products, visit lnh.net/omega
